New AH36 Carbon steel plate
Release time:
2025-08-18
New AH36 Carbon steel plate Is One of the Main Spots Products of Baofa With the Best Quality,With Professional Production Facilities,Welcome to Call
Product Name | AH36 Carbon Steel Plate |
Material | 4130、4140、AISI4140、A516Gr70、A537C12、A572Gr50、A588GrB、A709Gr50、A633D、A514、A517、AH36,API5L-B、1E0650、1E1006、10CrMo9-10、BB41BF、BB503、CoetenB、DH36、EH36、P355GH、X52、X56、X60、X65、X70、Q460D、Q460、Q245R、Q295、Q345、Q390、Q420、Q550CFC、Q550D、SS400、S235、S235JR、A36、S235J0、S275JR、S275J0、S275J2、S275NL、S355K2、S355NL、S355JR、S355J0、S355J2、S355G2+N、S355J2C+N、SA283GrA、SA612M、SA387Gr11、SA387Gr22、SA387Gr5、SA387Gr11、SA285GrC、SM400A、SM490、SM520、SM570、St523、St37、StE355、StE460、SHT60、S690Q、S690QL、S890Q、S960Q、WH60、WH70、WH70Q、WQ590D、WQ690、WQ700、WQ890、WQ960、WDB620 |
Surface | Natural color coated galvanized or customized |
Technique | hot rolled or cold rolled |
Application | AH36 steel plate is a steel plate with a thickness of no more than 150 mm for the manufacture of ocean going, coastal and inland navigation ships, fishing boats and offshore engineering structures. For steel plates with Z-direction requirements, add Z25 and Z35 to the suffix, which is used as structural steel for high-strength ships and offshore engineering. |
Standard | DIN GB JIS BA AISI ASTM EN GOST etc. |
Delivery time | Within 7-15 workdays after receiving deposit or L/C |
Export packing | Steel strips package or seaworthy packing |
Capacity | 250,000 tons/year |
Payment | T/T L/C, Western Union etc. |
Carbon Steel plate application range
AH36 steel plate is a steel plate with a thickness of no more than 150 mm for the manufacture of ocean going, coastal and inland navigation ships, fishing boats and offshore engineering structures. For steel plates with Z-direction requirements, add Z25 and Z35 to the suffix, which is used as structural steel for high-strength ships and offshore engineering.
AH36 steel plate delivery status
AH36 steel plates are usually delivered in hot rolling, controlled rolling, normalizing and thermo mechanical rolling states
The carbon content of high-strength ship plate steel is less than or equal to 0.18%, while the Mn content is generally 0.6~1.6%. The high-strength steel AH36, DH36, EH32 and EH36 are added with 0.015~0.05% Nb and 0.030~0.10% V. Grade D steel plate can be produced by controlled rolling and controlled cooling process, but the steel plate with thickness greater than 35mm generally requires normalizing treatment.

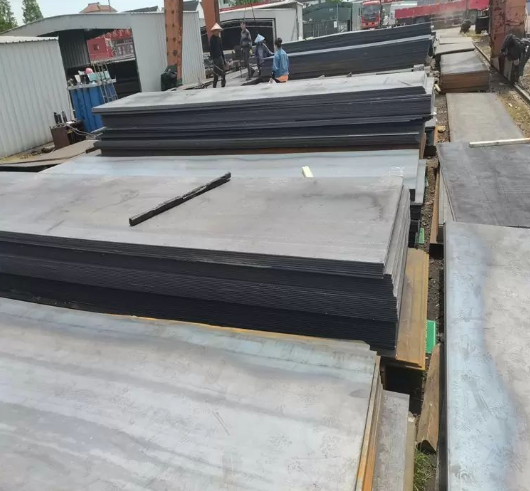

Packing & Delivery
The Carbon steel sheet will be packed in seaworthy packing such as steel strips bundles. If you have any special requests
on this, please let us know advanced. We will refer to your email kindly.
1).20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High)
2).40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High)
3).40ft HC:12032mm(Lengh)x2352mm(Width)x2698mm(High)
AH36 carbon steel plate represents a high-strength structural steel specifically designed for marine applications, meeting the rigorous demands of shipbuilding and offshore structures. As classified by the American Bureau of Shipping (ABS), this marine-grade steel offers superior yield strength (minimum 355 MPa) and tensile strength (490-620 MPa) while maintaining excellent weldability and impact resistance at low temperatures. The chemical composition of AH36 is carefully balanced, with controlled carbon content (typically below 0.18%) and strategic additions of manganese, silicon, and micro-alloying elements to achieve optimal strength-to-toughness ratio without compromising fabrication characteristics.
The manufacturing process involves controlled rolling and normalizing to refine the grain structure, ensuring consistent mechanical properties throughout the plate thickness. AH36 plates demonstrate exceptional through-thickness performance (Z-direction properties), a critical requirement for marine applications where structural integrity under multidirectional stresses is paramount. Charpy V-notch impact testing at -20°C verifies the material's toughness in cold marine environments, with typical values exceeding 34J to withstand dynamic loads and wave impacts.
